3D Composite Geonet

Three-dimensional composite drainage geonet

3D Composite Geonet

(Three-dimensional composite drainage geonet)

Product Inroduction:

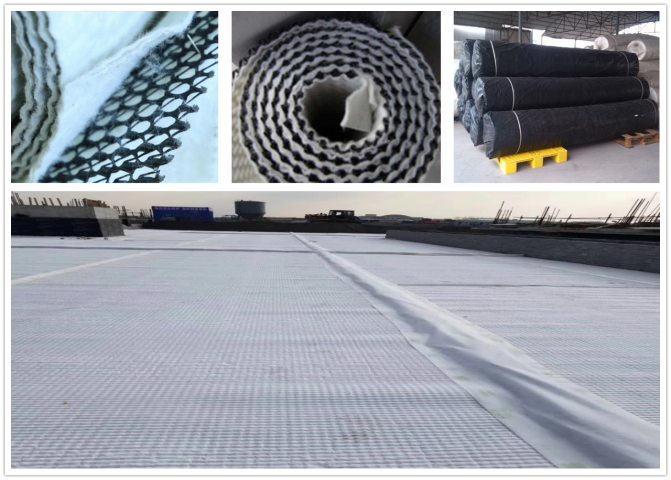

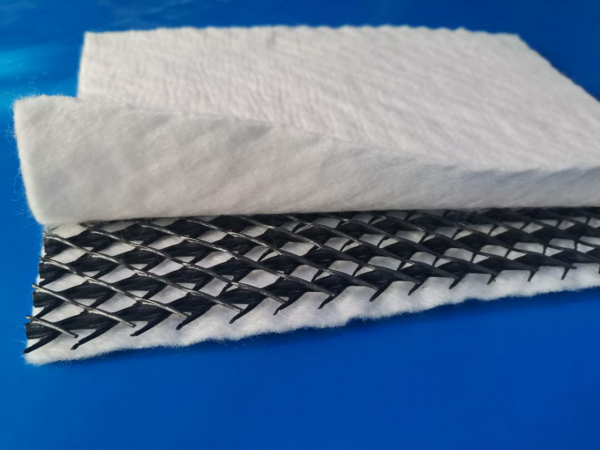

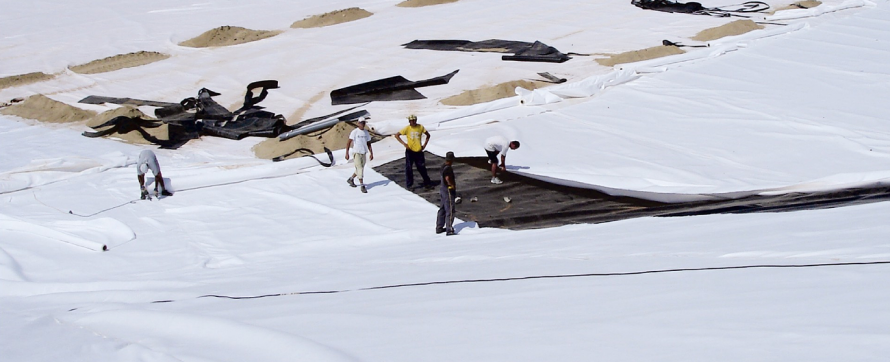

3D composite drainage geonet is made of special geonet with double -side bonded geotextile.The combination of geotextile (reverse filtration) and geonet(drainage and protection) provides a cpmplete "reverse filtration-drainage-protection" effect.The special 3D structure of the mesh can with-stand high compressive loads during the entire use process,and can maintain a considerable thickness,provide good permeability.It can replace traditional sand and gravel layers,and is mainly used for drainage of landfills,roadbeds and inner walls of tunnels.

Product Feature:

1. Good drainage capacity(equivalent to one meter depth of gravel drainage).

2 high tensile strength.

3. Reduce the probability of geotextiles embedded in the network core and maintain

long-term stable drainage.

4. High pressure load for a long period of time (can withstand about 3000Ka compression load).

5 Corrosion resistance, acid and alkali resistance, long service life.

6.Convenient construction, shorten construction period and reduce cost.

Product Specification:

No.	Item	Unit	Spec/Standard Value
			750g/m2	1000g/m2	1200g/m2	1300g/m2	1400g/m2	1600g/m2	1800g/m2
1	Unit weight of compond	g/m2	≥750	≥1000	≥1200	≥1300	≥1400	≥1600	≥1800
2	Thickness of compond	mm	≥5.0	≥6.0	≥6.0	≥7.0	≥7.0	≥8.0	≥9.0
3	Longitudinal tensile strength	KN/m	≥16.0
4	Water diversion ration of compond production	m2/s	≥1.2×10-4
5	Peel strength of network core and geotextile	KN/m	≥0.3
6	Thickness of geonet	mm	≥4.0	≥5.0	≥5.0	≥6.0	≥6.0	≥7.0	≥8.0
7	Tensile strength of geonet	KN/m	≥8.0	≥10.0	≥13.0	≥14.0	≥15.0	≥15.0	≥15.0
8	Unit weight of geotextile	g/m2	≥200
9	Seepage coefficient of geotextile	cm/s	≥0.3
10	Width	m	2m,4m,5.8m or customized
11	Length of one roll	m	30m,50m or customized
